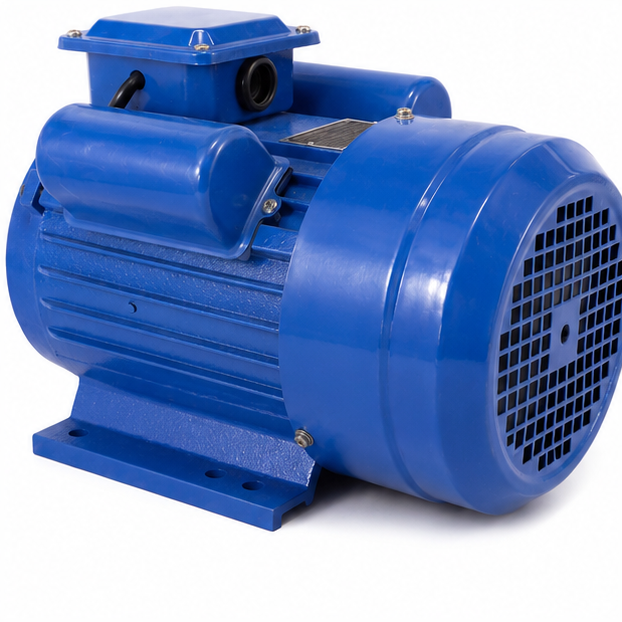

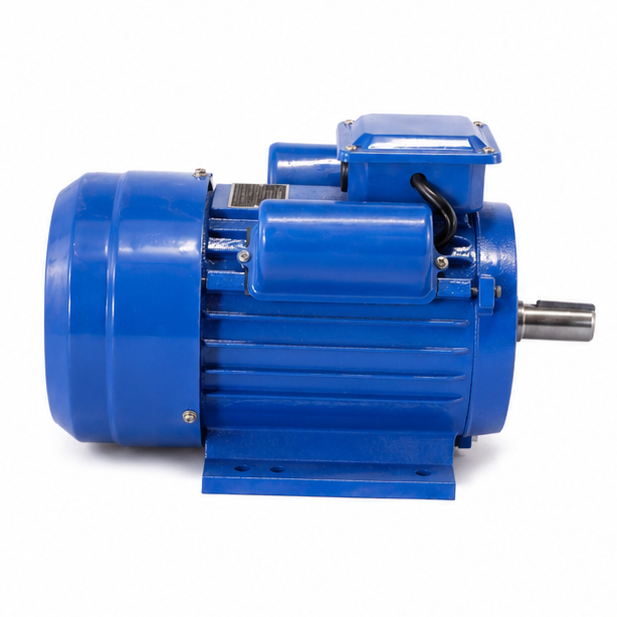

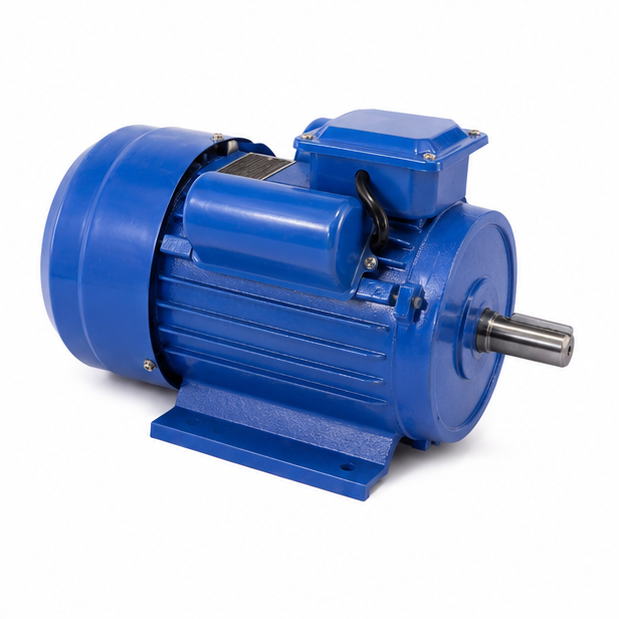

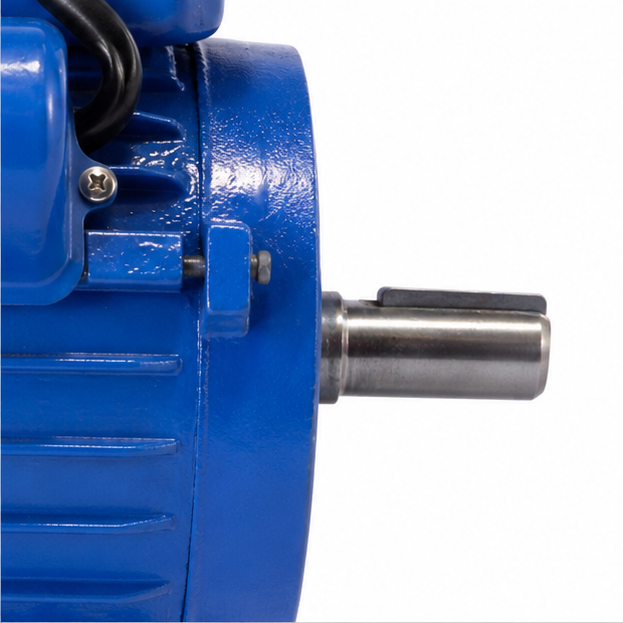

Single Phase Electric Motor, 4 HP, 220V, 1400 RPM, Dual Capacitor, Continuous Duty
SKU:
ACM0034
Regular price
960.00
Sale price
960.00
Regular price
Unit price
Tax included.
{title}
00
days
00
hrs
00
mins
00
secs
This single-phase electric motor is designed for steady performance in compressors, pumps, and general machinery. With a slow-speed 4-pole setup and dual capacitor design, it delivers reliable starting, stable operation, and continuous-duty use for demanding applications.
Technical Specifications
| MODEL | YL100L2 |
|---|---|
| Type | Electric motor — built for practical power transmission in workshop and industrial tasks |
| Power | 4.0 HP — provides dependable output for pumps, compressors, and machinery |
| Motor Type | Single-phase induction motor — easy to use with single-phase power supply |
| Voltage | 220V — compatible with common single-phase installations |
| Frequency | 50 Hz — standard operation for typical electrical systems |
| Speed | 1400 RPM — lower speed for more stable running performance |
| Poles | 4 poles — balanced operation with suitable torque characteristics |
| Current | 16–18 A — important for correct wiring and protection setup |
| Power Factor | 0.90–0.95 — supports efficient power usage |
| Capacitor | Dual capacitor — improves starting and running performance |
| Cooling | Air cooled — helps maintain operating temperature |
| Insulation Class | B / F — better thermal resistance for continuous work |
| Protection | IP44 / IP55 — added protection for different working environments |
| Mounting | Foot mount, horizontal — easy installation on equipment frames |
| Body Material | Cast iron — durable construction for longer service life |
| Applications | Compressors / Pumps / Machinery — versatile for multiple uses |
| Duty | Continuous (S1) — made for long operating cycles |
| Weight | 25 / 30 kg — solid build for stable installation |
| Dimension | Frame 100L — standard frame size for fitting needs |
