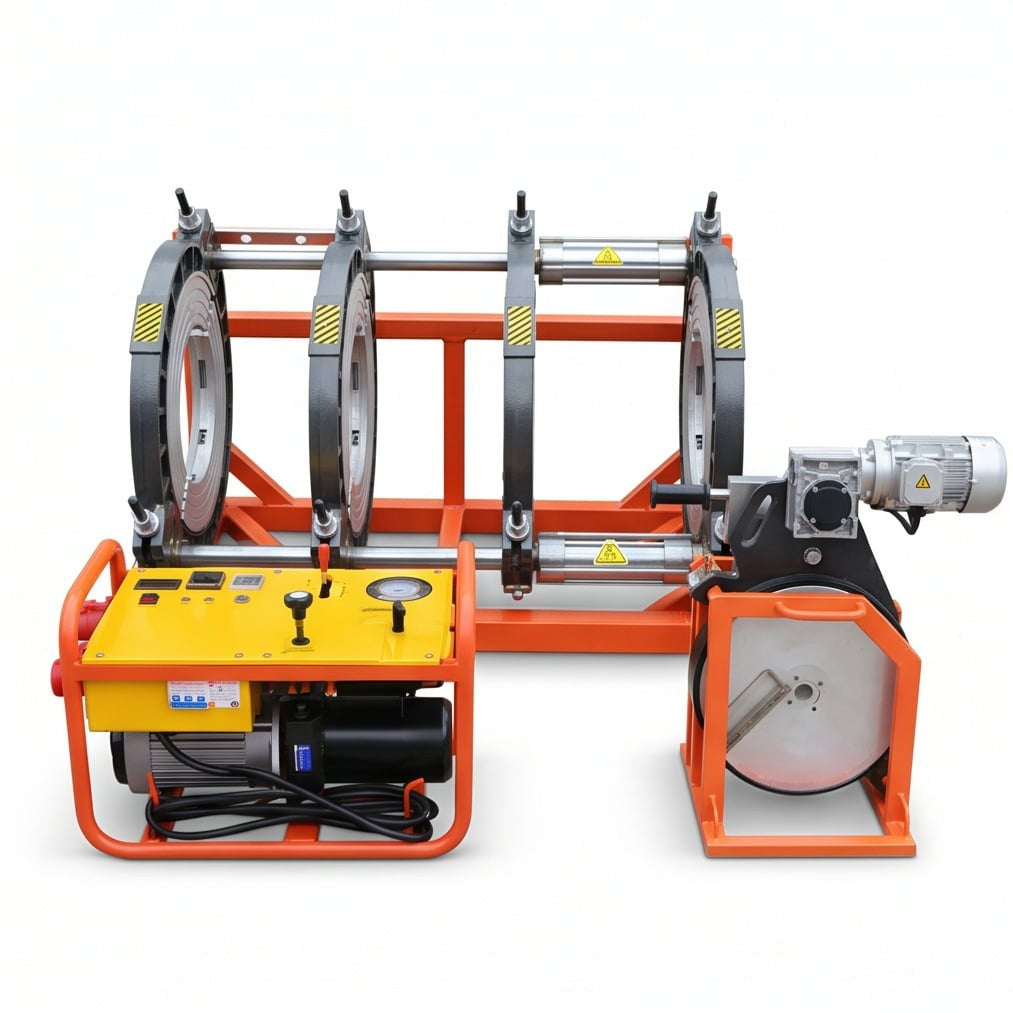

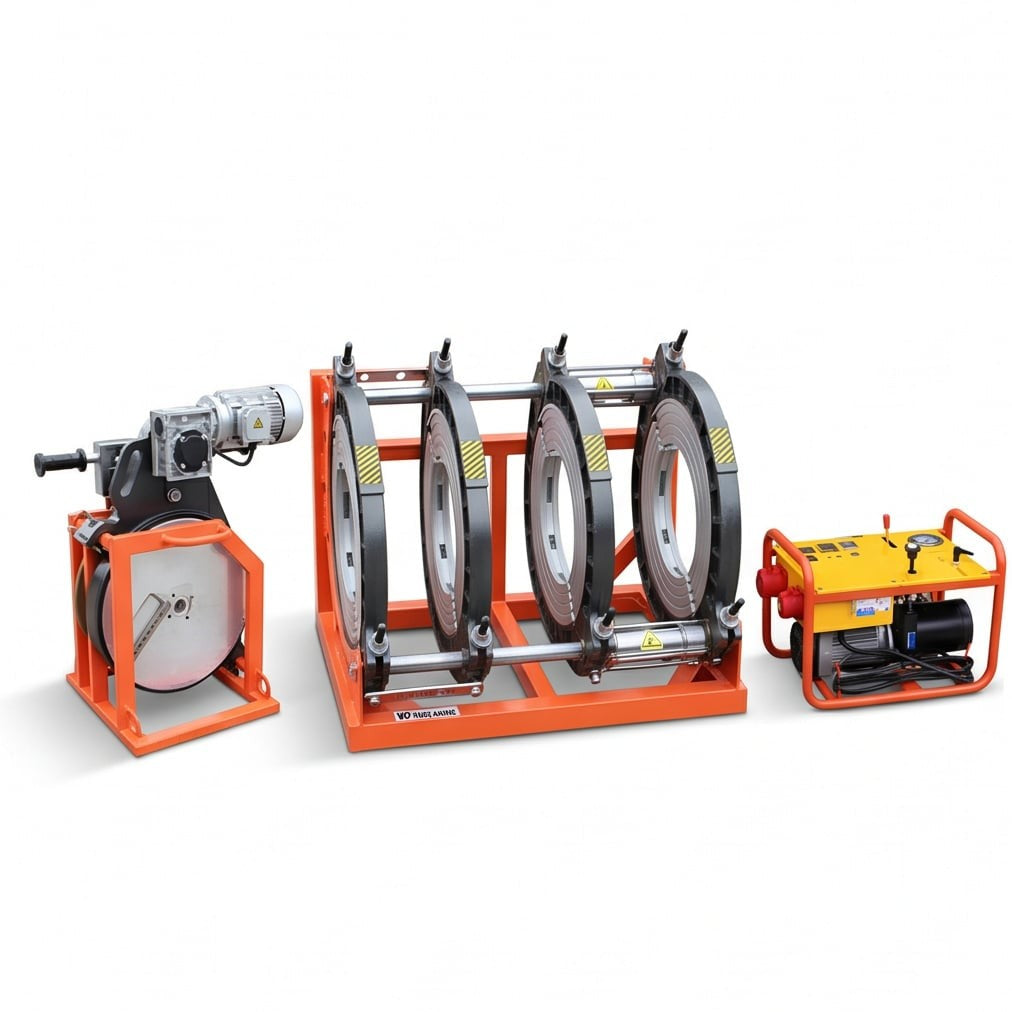

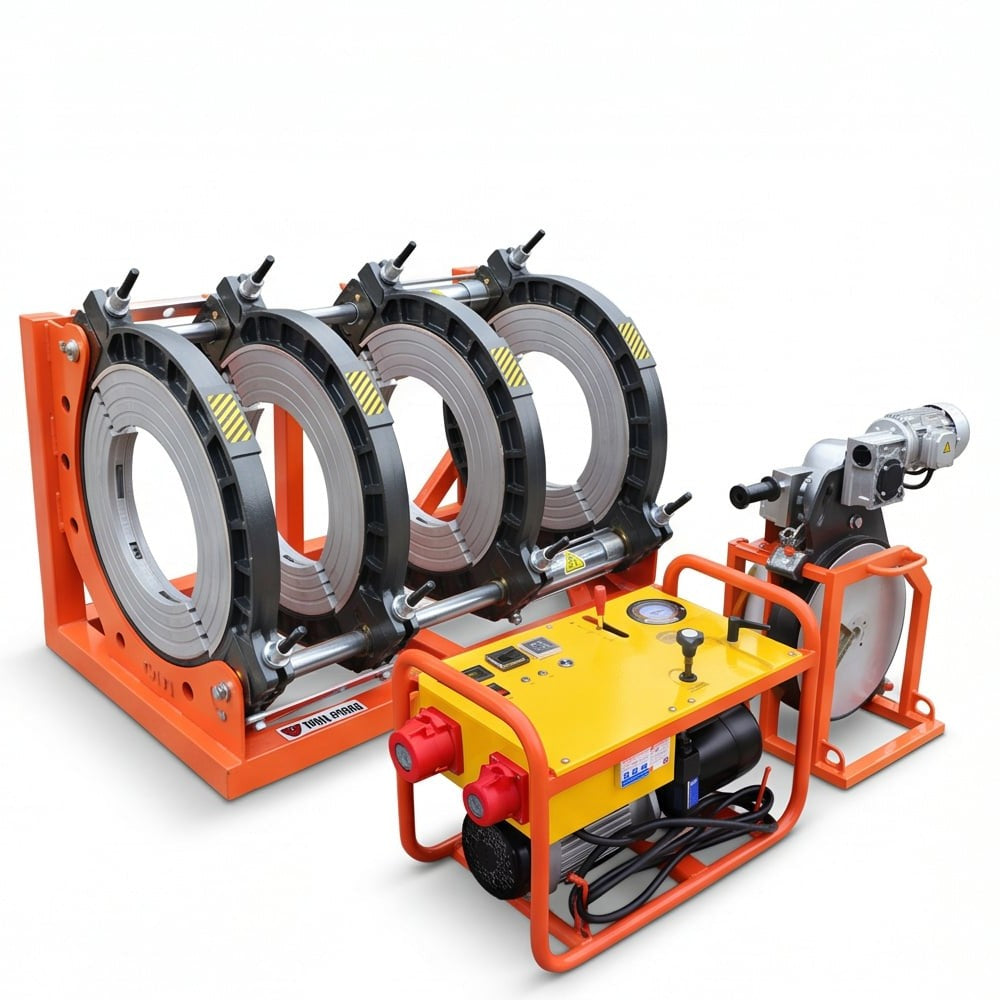

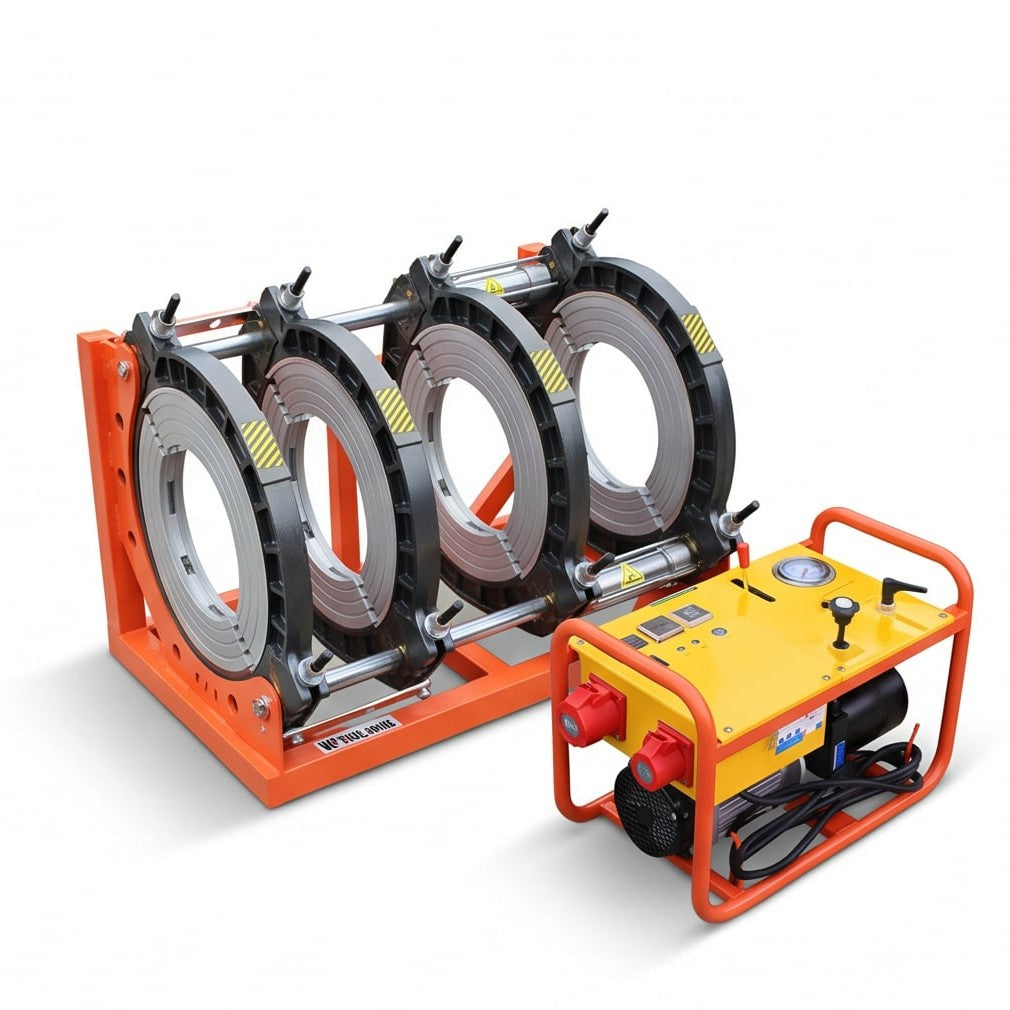

Perfect, Hydraulic Butt Fusion Welding Machine for PE, PP, HDPE, PVDF Pipe Joining
SKU:
WMP0029
Regular price
19,800.00
Sale price
19,800.00
Regular price
Unit price
Tax included.
{title}
00
days
00
hrs
00
mins
00
secs
This hydraulic butt fusion welding machine is designed for joining PE, PP, PP-R, HDPE, and PVDF pipes with consistent pressure and temperature control. It is suited for medium to large pipe welding jobs where accuracy, stability, and reliable joint quality matter.
Technical Specifications
| MODEL | 315–630MM (24") |
|---|---|
| Type | Hydraulic butt fusion welding machine, built for strong and uniform pipe joints. |
| Welding Range (O.D.) | 315 – 630 MM, suitable for a wide range of pipe diameters. |
| Power Supply | 380 V ±10%, ideal for industrial use. |
| Frequency | 50 / 60 HZ, offering flexible site compatibility. |
| Heater Power | 9.0 – 12.0 KW, supports stable welding temperatures. |
| Trimmer Power | 1.5 – 2.2 KW, helps prepare pipe ends accurately. |

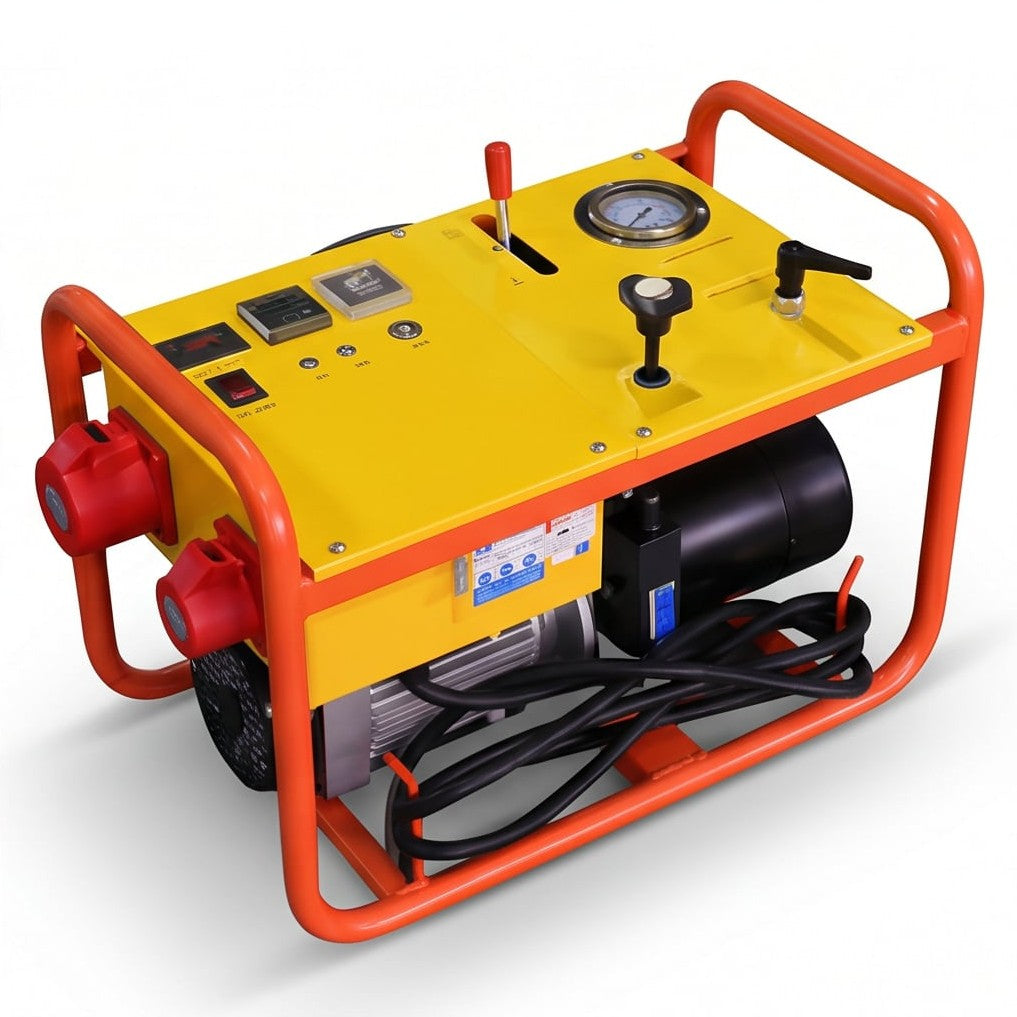

| Hydraulic Unit Power | 1.5 KW, delivers steady operating pressure. |
| Total Power | 12.0 – 16.0 KW, balanced for demanding welding tasks. |
| Temperature Range | 0 – 300 °C, allowing proper heat control for different materials. |
| Temp Accuracy | ±5 °C, helping maintain consistent weld quality. |
| Working Pressure Range | 0 – 120 BAR, for controlled fusion pressure. |
| Control | Hydraulic control system, for easier operation and better process control. |
| Material | PE / PP / PP-R / HDPE / PVDF, suitable for multiple pipe materials. |
| Weight | 500 / 700 KG, providing stability during welding. |
| Dimension | 1200×800×900 MM, practical for workshop and site use. |
| Main Benefit | Delivers strong, precise butt fusion welding for industrial pipe installation. |
